For CD400 Truck Tachograph programmer calibrates programs analogue and digital for digital For CD400 Tacho Programmer KIT Calibration programming tool For digital Tachograph truck tacho Tool KIT
| Place of Origin | CHINA |
|---|---|
| 브랜드 이름 | JIUTECH-Lucy |
| Model Number | for CD400 |
| Minimum Order Quantity | 1 |
| Packaging Details | PACKAGE |
| Delivery Time | 1 work day |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 1000 |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| Software Version | for CD400 | Model Name | for CD400 |
|---|---|---|---|
| Hardware Version | CD400 truck tachograph | Origin | Mainland China |
| Quality | Superior | Function | Changing the mileage and add VIN number |
| tacho programming kit | for digital tachograph programmer | truck tacho tool | for CD400 |
| Product Name | CD400 truck tachograph mileage kit | Calibration Programmer KIT | For cd400 digital Tachograph truck tacho Tool |
| work for | speed distance adjustment |
제품 설명
For CD400 Truck Tachograph programmer calibrates programs analogue and digital for digital Tachograph truck tacho Tool
Item Description:
TACHOGRAPH PROGRAMMER (TACHO)
Supported languages:English, German, Spanish, French, Dutch, Portuguese, Turkish, Romanian,Syriac, Russian
Tachograph programmer (Tacho) is designed for verification, calibration and configuration of control devices (tachograph) when installed on vehicles. The device allows you to define the W figure determination on measuring track or rolling road, K figure measure, can be used as speed simulator for the tachograph when checking the speedometer and odometer.
Supports IMS (Independent Motion Signal / Second speed signal) parameters on DTCO 2.0, SE5000 Exakt Duo and EFAS-4.
Supports 'VDO counter' parameter on DTCO 2.0
Basically, a tachograph is a device that measures and records the speed and distance driven by a vehicle. The data are recorded in the form of graphics on a paper disk.The new digital tachographs record those data on its embedded memory and also on the smartcard of the driver.The programmer CD400 calibrates and programs all analogue and digital .

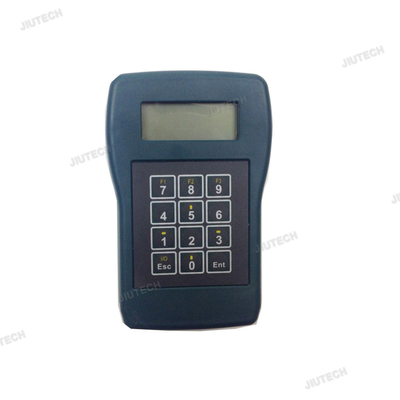

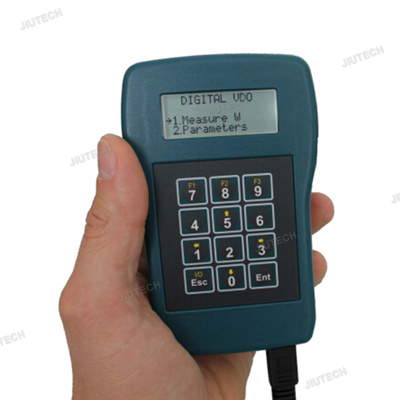

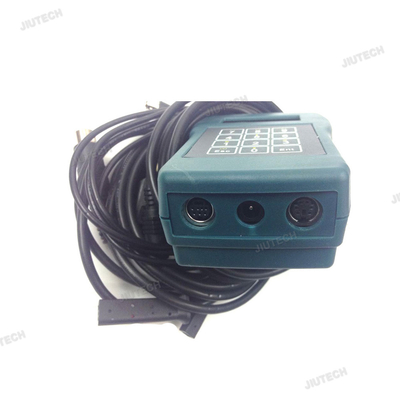

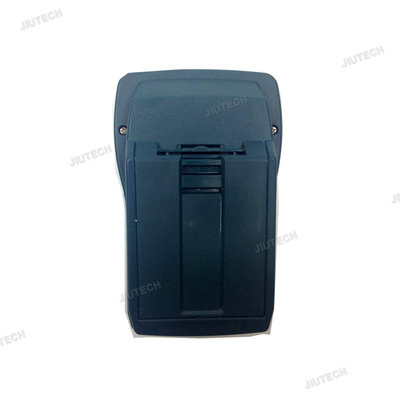

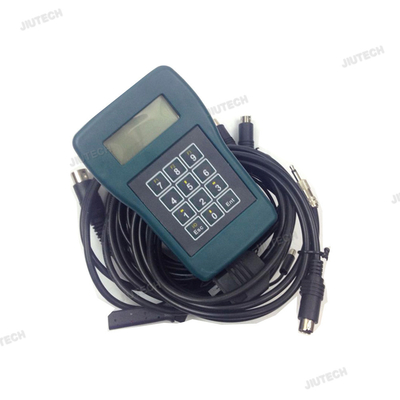

Real shot:
A Workshop Card is required to cluster calibration the digital
Cd400 is a driving recorder, can change the odometer, support truck type
Software upgrade process:
1. Download and install the CD200-ISP software: setup-CD200-ISP-V1-2.zip
2. Use the upgrade cable (CA-RS232-1) to connect the CD400 to the serial port of your computer.
3. Start the CD200-ISP software.
4. Select the COM port.
5. Select. hex file.
6. Click the "Program" button.
7. Use the dash cam, DC adapter (9V to 30V) or internal 9V battery to switch the CD400 power supply.
8. Wait for the progress bar to complete.

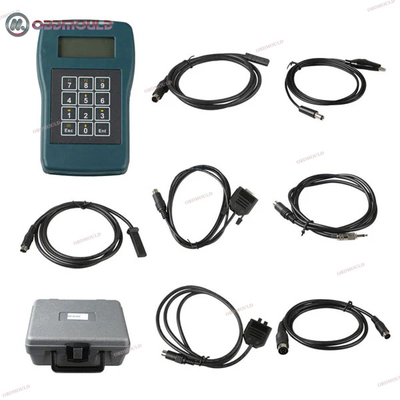

| CD400 Package included: |
| 1pc x CD400 1pc x Cable for CA-1319-0 1pc x Cable for CA-CROCO-0 1pc x Cable for CA-DIGITAL-0 1pc x Cable for CA-EGK100-0 1pc x Cable for CA-KTCO-0 1pc x Cable for CA-MTCO-1 1pc x Cable for CD400-RS232 1pc x Manual |
CD400 Supported :
Analogs: KTCO 1314/1318, Motometer EGK100, FTCO 1319, MTCO 1324/1390, TSU 1391, VR2400.
Digitals: DTCO 1381 (DTCO2.1 active), SE5000 (Exakt Duo), SmarTach, EFAS-4.
A Workshop Card is required to cluster calibration the digital
CD400 Functions:
W figure determination on measuring track (with optional photo-cell) or rolling road.
K figure measure on KTCO 1314, KTCO 1318 and FTCO1319.
Parameter programming.
Activation and deactivation of IMS (Independent Motion Signal).
Activation and deactivation of VDO counter.
reset and (mileage correction).
Speed simulation and customizable automatic test diagram.
DTCS reading (Digital) and erasing.
Sensor pairing (KITAS activation).
Clock test.
Workshop card's PIN recording and input through CD400.
CD400 Advantages:
No power connection nor battery charging required, the only tester powered by the itself.
Compact size, the smallest tester on the market.
User friendly, clear 4 lines menus, no training required.
Automatic model detection on power on.
Double accuracy of the W factor measure on track by detecting half pulses.
The only tester being able to reset the and change the sender type on the VR2400.
Flash program memory, easy software upgrade using a serial port or USB serial adapter on any PC.
CD400 Technical Specifications:
Graphic FSTF LCD Display: (100 x 32 pix. / 4 lines x 20 char)
White LED backlight
Size: 150 x 100 x 45 mm
Supply voltage: 9 to 30 VDC
Supply current: 12mA
est: green-blue ABS (IP40).
Operating temp: -20...+70°C
Weight: 155g
