AUTEL MaxiSys MS906BT Advanced Wireless Diagnostic Devices with Android Operating System 1 Years Free Update Online
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | Autel MaxiSys MS906BT |
| 모델 번호 | 오텔 막시시스 ms906bt |
| 최소 주문 수량 | 1 |
| 가격 | 890$ |
| 포장 세부 사항 | 66*44*20cm / 11.8kg |
| 배달 시간 | 1가지 작업일 |
| 지불 조건 | T/T, 웨스턴 유니온, 머니그램 |
| 공급 능력 | 1000 |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 모델 이름 | 오텔 막시시스 ms906bt | 원산지 | 중국 본토 |
|---|---|---|---|
| 품질 | 최고 | 운영 체제 | Android ™ 4.4.2, Kitkat |
| 종류 | 자동차 진단 도구 | 프로세서 | 삼성 엑 시노스 T5260 6 코어 프로세서 (1.3GHz 쿼드 코어 암 코르텍스 -A7 + 1.7GHz 듀얼 코어 암 Cortex-A15) |
| 메모리 | 2GB RAM 및 32GB ROM | 표시 | 8.0 "1024x768p 해상도로 LED 용량 성 터치 스크린 |
| 연결성 | Wi-Fi (802.11 B/G/N), USB : 2.0, Mini USB 2.0, 무선 BT v2.1+EDR, Class1, HDMI 1.4A, SD 카드 (최대 32GB) | 카메라 (후면) | 후면 얼굴, 8.0 메가 픽셀, 손전등이있는 AF |
| 센서 | 중력 가속도계, 앰비언트 라이트 센서 (ALS) | 음성 입출력 | 마이크, 단일 스피커, 3 밴드 3.5mm 스테레오/표준 헤드셋 잭 |
| 전원과 배터리 | 10,000 mAh 3.7 v 리튬 폴리머 배터리, 12 V AC/DC 전원 공급 장치를 통해 충전 | 입력 전압 | 12 V (9-35 V) |
| 강조하다 | Wireless Diagnostic Devices,Android Diagnostic Devices,Online Diagnostic Devices |
||
제품 설명
Product Description
Autel MaxiSys MS906BT automotive diagnostic scanner is a cost-effective alternative for Autel MS908 as they have basically the same functions. MS906BT scan tool is also an upgrade choice for MS906 since it has advanced ECU Coding capability, improved usage experience with ultra-long distance wireless OE-Level Diagnosis, doubled battery capacity and compatibility.
AUTEL MaxiSys MS906BT With ECU Coding, Bi-Directional Control, OE-leve Diagnostics
Autel MaxiSys MS906BT is the latest addition to the MaxiSys product line of advanced wireless diagnostic devices. The device is based on the Android operating system featured with the best possible coverage of OE-level diagnostics and ECU coding capability. Utilizing the powerful Exynos 5260 6-core processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15), an 8"capacitive HD touch screen, and long-distance wireless communication, the MaxiSys MS906BT efficiently provides comprehensive vehicle diagnostics and analysis.
Autel MaxiSys MS906BT Highlights:
1. 21 Most Commonly Used Services and ECU Coding
2. All Systems OE-Level Diagnosis
3. BI-Directional Control (Perform active tests or function tests)
4. Unparalled Vehicle Coverage: Supprot 80+ US, Asian and European makes and models
5. Same functions as MS908 but more portable, upgrade choice for MS906
6. 1 Years Free Upate Online
Notice :
Language: English Only. If you need multi-language, please choose Autel MaxiCOM MK906BT.
In stock in US warehouse only, ship to US address only, other address, please buy Autel MaxiCOM MK906BT
Autel MaxiSys MS906BT Features:
*Extraordinarily powerful Samsung Exynos Hexa-core processor
*8.0"1024x768 LED-backlit glossy Multi-Touch capacitive display with IPS technology for ultra-mobility
*Internal reliable 32GB SSD for better performance
*Built-in 8-megapixel rear camera with autofocus and flashlight
*802.11b/g/n Wi-Fi to access your favorite web resources
*Unique ergonomic design with rubberized outer protection and a rugged internal housing
*Built-in rechargeable lithium-polymer battery for up to 14 hours of continuous operation
*USB, audio and auxiliary ports make it easy to connect accessories
*Open source Android Operating System for fast boot-up and multitasking
*Easy and intuitive navigation makes finding what you need simple and fast
*The most extensive complete system coverage for more than 80 US, Asian and European makes and models
*Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding
*Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, coding etc.
*Smart AutoVIN technology for identifying vehicle easily
*Automatic system and software updates with real-time push message notifications via internet
*Instant remote control tech support anytime, anywhere
*Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
*Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
*One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
*Enhanced wireless BT connectivity between the display tablet and VCI device allows greater mobility and ease at work
*Convenient data management system for managing internal program applications and reviewing data
Autel MaxiSys MS906BT Functions:
OE-Level Diagnosis on all All Availble modules
Autel MaxiSys MS906BT is a diagnostic automotive scanner that can access ALL available vehicle modules including but not limited to PCM, ECM, EPS, PDM, TPM, BCM, ABS and SCCM and etc and perform OE-Level wireless diagnosis on all available car systems ABS, SRS(Airbag), Engine, Transmission, Brake Systems and etc.
21 Most Useful Service/Special Functions
MS906BT auto scan tool can perform various most useful service/special functions like Oil Reset, SAS Calibration, reset parking brake pads after brake system replacement, DPF Regeneration, Battery Registration, and special functions like ABS Auto Bleed, Injector Coding, Key Fob Coding(All keys lost, add new keys) and etc. NOTE: Service/Special functions are NOT universal for all vehicles.
Active Tests
Autel MaxiSys MS906BT comes with bi-directional control capability and is capable of performing Active Tests (functional tests) to access vehicle-specific subsystems and component tests. The tester outputs commands to the ECU to drive the actuators in order to determine the integrity of the system or parts by reading the ECU data, or by monitoring the operation of the actuators such as switching a solenoid, relay, or switch between two operating states.
Key FOB Programming
Autel MaxiSys MS906BT car key programming scan tool comes with IMMO Keys function(Key Fob Programming). It can perform: Key Button Tests, Add New Keys, All Keys Lost, Remote Learning for some vehicles to prevent your cars from being stolen!
Advanced ECU Coding
Autel MS906BT comes with advanced ECU Coding capability. But it does NOT have ECU Programming capability.
ECU Coding: Upgrading the ECU when a new version is issued by the manufacturer. SUPPORT SOME VEHICLES ONLY. To check compatibility, please message us VIN number to check compatibility.
ECU Programming: Reprogramming the ECU with whatever data you want. MS906BT does NOT have ECU Programming capability.
ABS Auto Bleed
Autel MaxiSys MS906BT professional automotive scan tool can perform ABS Brake Bleeding function to bleed the air trapped in the ABS module out before bleeding your brake lines, and save you good dollars taking your car to a shop or dealership.
NOTE: Functions is NOT universal for all vehicles. Please message us VIN number to check compatibility.
Autel MaxiSys MS906BT Supported Vehicle:
Autel MS906BT professional automotive diagnostic tool comes with unmatched vehicle coverage of more than 80 American, Asian and European vehicle makes.With 9 Non-Standard adapters included in the package and complete OBD2 capabilities that can perform all 10 modes of OBD2 tests , MS906BT offers complete OBDII coverage. NOTE: MS906BT does NOT support OBDI vehicles.
Autel MaxiSys MS906BT Supported Hardware:
Autel MaxiSys MS906BT can work with the Autel inspection camera (such as MV105,MV108) and the Oscilloscope (MaxiScope MP408)
Autel MaxiSys MS906BT vs MaxiSys MS906
Autel MaxiSys MS906BT Specifications:
| Operating System | Android™ 4.4.2, KitKat |
| Processor | Samsung Exynos T5260 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15) |
| Memory | 2 GB RAM & 32 GB ROM |
| Display | 8.0" LED capacitive touch screen with 1024x768P resolution |
| Connectivity | Wi-Fi (802.11 b/g/n), USB: 2.0, Mini USB 2.0, Wireless BT V2.1+EDR, Class1, HDMI 1.4a, SD Card (support up to 32 GB) |
| Camera (rear) | Rear-facing, 8.0 Megapixel, AF with Flashlight |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output | Microphone, Single Speaker, 3-Band 3.5 mm stereo/standard headset jack |
| Power and Battery | 10,000 mAh 3.7 V lithium-polymer battery, Charging via 12 V AC/DC power supply |
| Input Voltage | 12 V (9-35 V) |
| Power Consumption | 5 W |
| Operating Temperature | -10 to 55°C (14 to 131°F) |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
| Dimensions (W x H x D) | 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”) |
| Weight | NW: 1.05 kg (2.3lb.) |

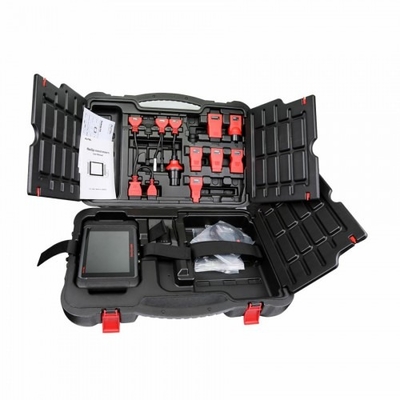

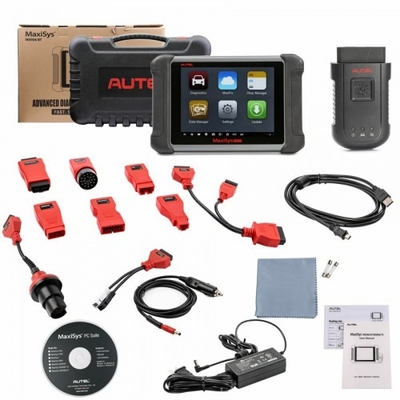

Autel MaxiSys MS906BT Package including:
User Manual
Carrying Case
Adaptor for Chrysler-16 (for NA only)
Light Fuse
MaxiVCI V100
Quick reference guide
Adaptor for GM/Daewoo-12
Adaptor for PSA-2
Adaptor for Fiat-3
Adaptor for BMW-20
Adaptor for Benz-38
Adaptor for Kia-20
Adaptor for Mitsubishi/Hyundai-12+16
Adaptor for Nissan-14
Adaptor for Honda-3
Cigarette Lighter
Compact Disc (CD)
AC/DC External Power Adapter
Adaptor for Benz-14 (for EU only)
Adaptor for VW/AUDI-2+2
Soft Cloth
Packing List
Mini USB Cable
