Launch X431 V+5.0 PRO3 10.1inch Tablet with X-431 SmartLink C 2.0 Heavy-duty Truck Module for Commercial Vehicles/ Passenger/ New Energy Car

Product Description

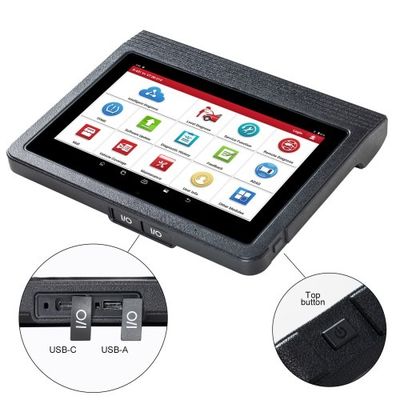

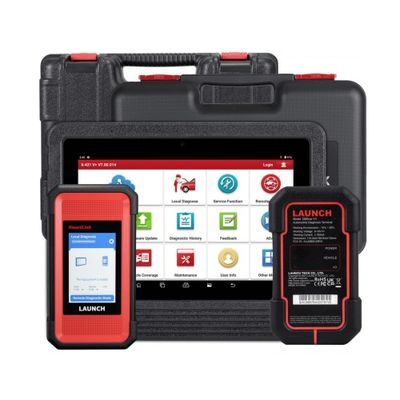

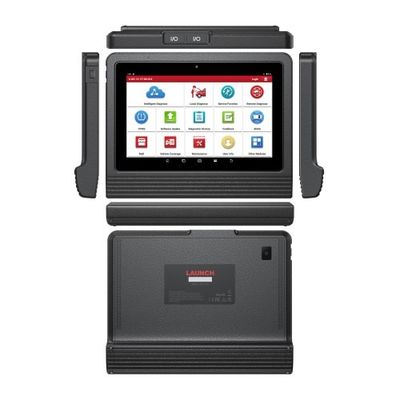

Launch X431 V+5.0 PRO3 10.1inch Tablet with X-431 SmartLink C 2.0 Heavy-duty Truck Module for Commercial Vehicles/ Passenger/ New Energy Car

This package includes both Launch X431 V+ 10inch Tablet and X-431 SmartLink C 2.0 Heavy-duty Truck Module



Top 8 Reasons to Get Launch X431 V+5.0 PRO3:

1. Supported Languages: English, Spanish, Portuguese, Arabic, French, Korean, Japanese, German, Russian
2. 10.1 inch multi touch capacitor screen give you better view for diagnose and data stream.
3. Wi-Fi & Bluetooth Supported
4. One click update: You do not have to download software to memory card anymore, can do one click update directly through your machine.
5. There is User Manual in the Multiplexer, you can check it when you use the device. It is in "cnlaunch" file
6. 2 Years Free Update Online. After 1 Year, It will cost $450/year or $599 for 2 years. If you don't want to update, the old software can still work too
7. Oversea full configuration contains total 59 softwares,See attached configuration Software List
8. No Software download IP limitation: Oversea download and update available
9. Ship from US/UK/EU Warehouse No Tax

What are the advantanges of X431 V+5.0 PRO3?

1. HUAWEI HiSilicon Quod-core 1.2G HZ, speed faster.
2. 1GB memory and 8GB storage for data.
3. Contain 72 car brand from USA, European, Asia and so on.
4. Support wifi/bluetooth and one click update, make your update job much easier.
5. 6600mAh Li battery can let you continue work 8 hours.
6. HUAWEI HiSilicon Quod-core 1.2G HZ, speed faster.
7. Original goods with full time technical service and guarantee.
8. 10.1 inch multi touch capacitor screen give you better view for diagnose and data stream.

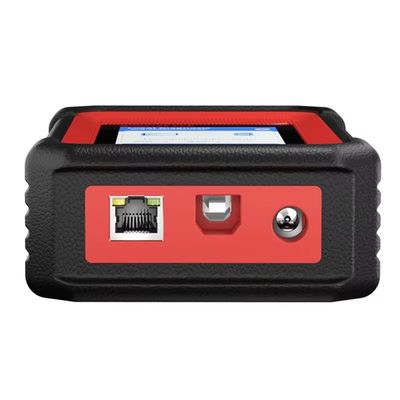

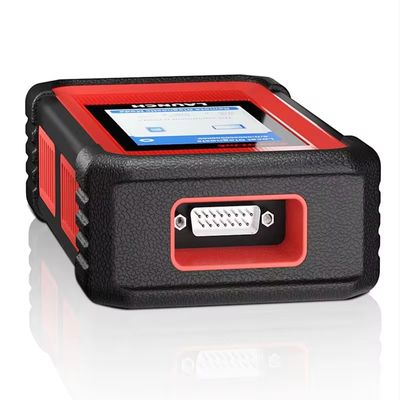

Launch X-431 SmartLink C 2.0 Heavy-duty Truck Module

Launch X-431 SmartLink C 2.0 is a heavy-duty vehicle diagnostic module developed by Launch Company based on Linux system, dual processor Cortex-A7+Cortex-M7, 8G storage, 256M storage, 320*480 resolution. It supports Bluetooth, Wi-Fi, USB and other communication methods, and can be used with Launch X-431 V+, PRO3S and PRO5 series.

The heavy-duty truck module is used to expand the configuration of passenger cars equipped with DBScar lower computer to the integrated configuration of passenger and business, and it is mainly supporting commercial vehicles.

1. Compared with X-431 HDIII, the SmartLink C 2.0 is more powerful in function.
2. The transmission speed is faster and more stable.
3. The visual operation interface makes it more convenient.
4. It supports commercial vehicles, passenger vehicles, new energy and other models.
5. It supports super remote diagnosis.
Free Update Online for 2 Year. (Registered after 2025-1-1 enjoy 2 Years free update). After 2 Year, Please Buy Subscription Cost if you need.

Wide Vehicle Coverage: Supports commercial vehicles, passenger vehicles, new energy and other models. Supports over 300 vehicle models worldwide, including brands like Cummins, Bosch, Weichai, Yuchai, Mercedes-Benz, Volvo, and many more.
Advanced Diagnostic Functions: Perform full-system fault diagnosis, including reading and clearing fault codes, reading data streams, and action tests.
High-Performance Hardware: Equipped with 8GB storage and 256MB memory, the SmartLink C 2.0 ensures smooth and efficient operation, even for complex diagnostic tasks.

Super Remote Diagnosis: Enables remote diagnostics, allowing you to troubleshoot and resolve issues from anywhere.
Versatile Compatibility: Works seamlessly with LAUNCH tablets like X-431 PRO3 APEX, X-431 PRO3 ACE, X-431 PRO3 (PRO3S+ 5.0), and X-431 PRO3 (V+ 5.0), making it a versatile addition to your diagnostic toolkit.

Features:

Work as a VCI (Vehicle Communication Interface)
Work as a Local J2534 PassThru Device
Work as a Remote J2534 PassThru Device

SmartLink Remote Diagnostic System:

The SmartLink Remote Diagnostics System is newly developed powerful service system dedicated to remote vehicle diagnosis and service. In this system, SmartLink C user, as a SmartLink Service Subscriber, can submit remote repair orders to vehicle repair companies (SmartLink B, the SmartLink Service Provider) via SmartLink Service Platform (http://smartlink.x431.com). The SmartLink Capplies to vehicles that comply with CAN/DoIP/CAN FD/J2534 diagnostic protocol standard.

The SmartLink C system consists of the following two parts:

1.SmartLink Service Platform -- For binding the SmartLink C dongles and posting the remote repair orders (*Note: Orders can be submitted only after the SmartLink C dongle is successfully bound)
2. SmartLink C Dongle -- Connects with vehicle’s Data Link Connector (DLC) to obtain vehicle information before submitting repair orders.

88 supported software list:

X431, JCB X431, Renault Heavy Vehicle X431, IRIZAR Heavy Vehicle X431, Zhongtong Bus (ZHONGTONG BUS) X431, USAFORD Diesel Version X431, AISIN Heavy Vehicle
X431, Yutong Bus X431, Foton Auman X431, IRISBUS Heavy Duty Truck X431, Kenworth Heavy Duty Truck X431, HD_TATA X431, VOITH Heavy Duty Truck
X431, Benz heavy truck X431, JAC heavy truck X431, CREDO heavy truck X431, Stirling heavy truck X431, Doosan engine X431 Perkins
X431, VOLVO Heavy Duty Truck X431, Freightliner Heavy Duty Truck X431, Dongfeng Commercial Vehicle X431, IWC Heavy Duty Truck X431, Peterbilt Heavy Duty Truck X431, DEUTZ
X431, Cummins engine X431, SCANIA X431, Chaochai X431, Xixing heavy-duty vehicle X431, WABCO ABS X431, ZF
X431, ISUZU Heavy Duty Vehicle X431, FUSO X431, Xichai X431, AutoSearch X431, Case X431, KNORR ABS
X431, IVECO Heavy Duty Vehicle X431, ASTRA X431, Quanchai X431, Dachai Heavy Duty Vehicle X431, Steyr X431, Miller
X431, special for Yuchai X431, BREMACH X-431, Dongfeng Yufeng X431, Golden Passenger Car X431, heavy-duty natural gas X431, HD_FLEXICOIL
X431, BOSCH X431, Hino X431, BONLUCK Bus X431, Higer Bus X431, DENSO_Diesel/Diesel Engine X431, Volvo Construction Machinery
X431, Shangchai X431, ERF X431, ALLISON gearbox X431, Ashok Leyland X431, DELPHI X431, MWM heavy duty vehicles
X431,DAF X431,UD Truck/Nissan Diesel X431,DETROIT Engine X431,Yang Diesel Engine X431,King Long Bus X431,Heavy Truck Demonstration Software
X431, FAW Jiefang X431, construction machinery X431, MACK heavy-duty vehicle X431, HD_ABS system X431, diesel version Mitsubishi X431, heavy-duty vehicle standard
X431, Hyundai Heavy Vehicle X431, SETRA Heavy Vehicle X431, WP Diesel Engine X431, Heavy Truck Aftertreatment System X431, Diesel Nissan X431, Commercial Vehicle One-key Scan
X431, Sinotruk X431, SITCAR heavy truck X431, Sunlong Bus (SUNLONG) X431, heavy truck Jiangling X431, diesel version Toyota
X431, MAN X431, NEOPLAN Heavy Duty Truck X431, Sunwin Bus (SUNWIN) X431, Caterpillar Heavy Duty Truck X431, TRAILER Heavy Duty Truck

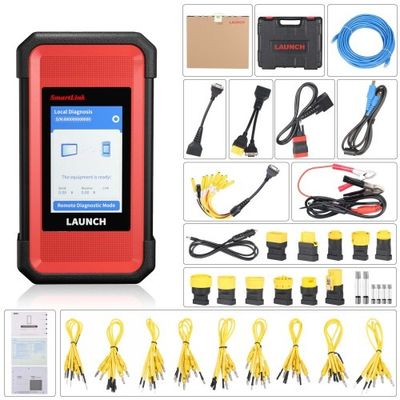

Package Includes:
