Launch X431 SmartLink C V2.0 – Remote Diagnostic Device ( Vehicle Data Link Connector )
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | LAUNCH X431 |
| 모델 번호 | X431 SmartLink C 2.0을 시작합니다 |
| 최소 주문 수량 | 1 |
| 가격 | $599 |
| 포장 세부 사항 | 44cm*38cm*14cm /4.6kg |
| 배달 시간 | 1가지 작업일 |
| 지불 조건 | T/T, 웨스턴 유니온, 머니그램 |
| 공급 능력 | 1000 |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 모델 이름 | X431 SmartLink C 2.0을 시작합니다 | 원산지 | 중국 본토 |
|---|---|---|---|
| 품질 | 최고 | 특별 특징 | 블루투스,와이파이 |
| 전압 | HD SmartLink C 2.0 | OEM 번호 | X431 SmartLink C 2.0 Heacy Duty 트럭 모듈을 시작하십시오 |
| 특징 1 | VCI (차량 통신 인터페이스)로 작업 | 특징 2 | 로컬 J2534 Passthru 장치로 작업하십시오 |
| 특징 3 | 원격 J2534 Passthru 장치로 작동합니다 | 지원 1 | 전체 시스템 결함 진단 |
| 지원 2 | can/doip/can fdij2534를 준수합니다 | 지원 3 | 코드 읽기, 코드 지우기 |
| 지원 4 | 데이터 스트림 읽기 | ||
| 강조하다 | Vehicle Data Link Connector Launch X431,Launch X431 SmartLink C V2.0 Diagnostic Device |
||
제품 설명
Product Description
- Compatible with LAUNCH tools, OE tools or any other diagnostic tools
- Support more advanced protocols like J2534, DoIP, CAN FD, CAN 2.0, RP1210, D-PDU
- Publish request and accept offer from Launch Super Remote Diagnosis Reservation Platform
- SmartLink can be used not only remote diagnosis but also local diagnosis by working with LAUNCH intelligent diagnostics
Launch SmartLink C V2.0 Remote Diagnosis Device
The SmartLink Remote Diagnostics System is a newly developed powerful service system dedicated to remote vehicle diagnosis and service. In this system, SmartLink B (Business), as a SmartLink Service Provider, can accept remote repair orders issued by SmartLink C users via SmartLink Service Platform.
Launch X431 SmartLink C Features
1. Compatible with LAUNCH tools, OE tools or any other diagnostic tools
2. Support more advanced protocols like J2534, DoIP, CAN FD, CAN 2.0, RP1210, D-PDU
3. Publish request and accept offer from Launch Super Remote Diagnosis Reservation Platform
4. SmartLink can be used not only remote diagnosis but also local diagnosis by working with LAUNCH intelligent diagnostics
Requires Activation card
SRDs SmartLink:
Super Remote Diagnosis Solution:
SRDs is comprised of SmartLink C, SmartLink B and Cloud Platform.
The SmartLink C can be connected to the vehicle, and the SmartLink B can be connected with any diagnostic device.
The remote diagnosis will be carried out on the SmartLink platform.
Launch X431 SmartLink C Service Platform:
SmartLink Platform is used to pair the connection between SmartLink C and SmartLink B operated with the internet browser.
SmartLink C user can post the remote diagnosis request on this platform. SmartLink B user can see the requests from their clients and accept the request to do the remote diagnosis.
How Does the LAUNCH SMARTLINK REMOTE DIAGNOSIS WORK?
This picture may help you better understand the complete procedure of the Smartlink remote diagnosis.
LAUNCH X431 SMARTLINK C TECHNICAL PARAMETERS

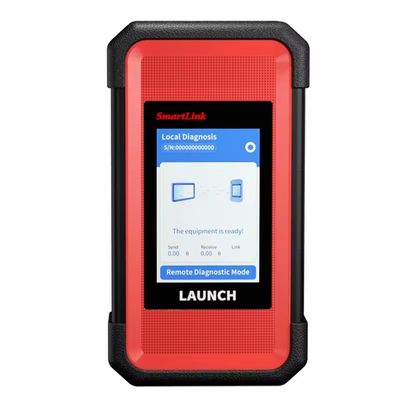

- 3.97“ Single-Touch Screen, 320 x 480
- Working Voltage: DC 9V ~ 36V
- Communication method: Ethernet
- Type B USB 2.0
- Storage: 8GB
- Memory: 256M
- Power Consumption: < 6W
- Working temperature: -10°C ~ 50°C
- Storage temperature: -20°C ~ 60°C
- Storage humidity: 10% ~ 90%
- Dimension: 204 x 110 x 45 mm

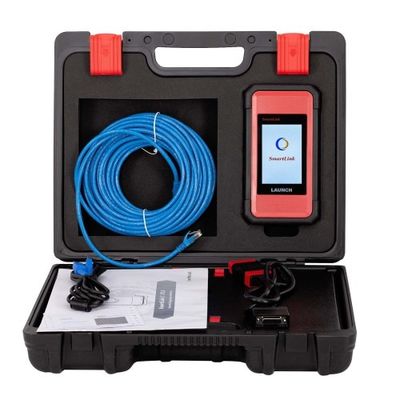

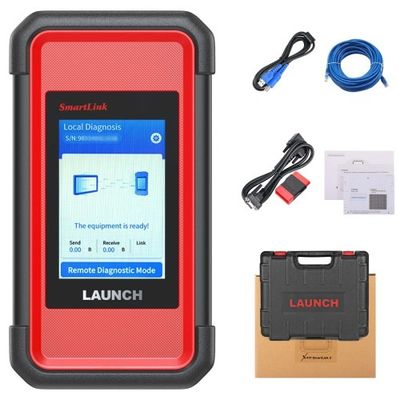

Launch X431 SmartLink C Packing List:
The following accessory items are for reference only. For detailed items, please consult with a local agency or check the packing list supplied with the device.
SmartLink C Dongle – For SmartLink Service Provider
OBD II Extension Cable – Connects the dongle to the VCI of the compatible diagnostic tool
CAT-6 Crossover Cable – Connects the dongle to the network modem
Power Adaptor – Supplies power to the dongle through an AC outlet.
