OBDSTAR MS70 New Generation Intelligent Motorcycle Scanner Motorbike Diagnostic Tool
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | OBDSTAR Motorcycle |
| 모델 번호 | MS70 진단 도구 |
| 최소 주문 수량 | 것 |
| 가격 | 1199$ |
| 포장 세부 사항 | 5.0 킬로그램 |
| 배달 시간 | 영업일 기준 1일 |
| 지불 조건 | T/T, 머니그램 |
| 공급 능력 | 재고 있음 |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 모델 이름 | Obdstar 오토바이 | 원산지 | 중국 본토 |
|---|---|---|---|
| 품질 | 최고 | 상품 종류 | 엔진 분석기 |
| 종류 | 차량 진단 케이블 및 커넥터 | 패키지 | 표준 패키지 종이상자 |
| 운송 용어 | DHL, EMS, TNT, UPS, 페덱스 | 색상 | 포토쇼로서 |
| 보증 | 한 해 | ||
| 강조하다 | OBDSTAR MS70 Motorcycle Scanner,Motorbike Diagnostic Tool,MS70 Intelligent Motorcycle Scanner |
||
제품 설명
Product Description

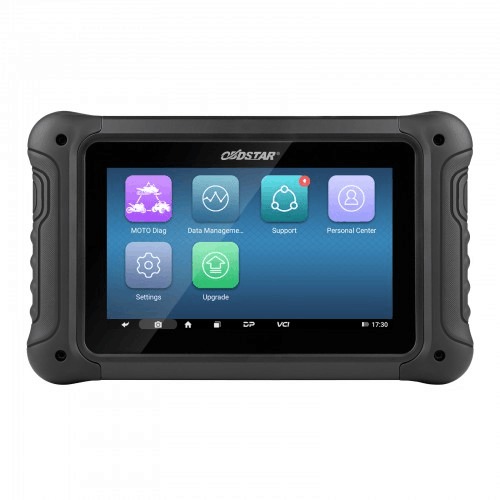

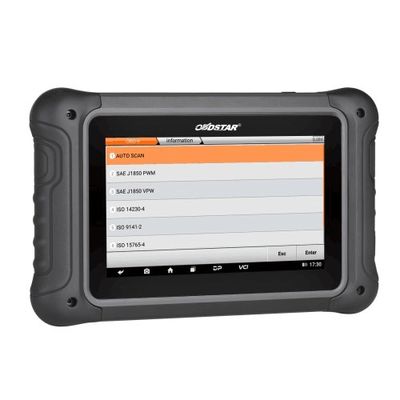

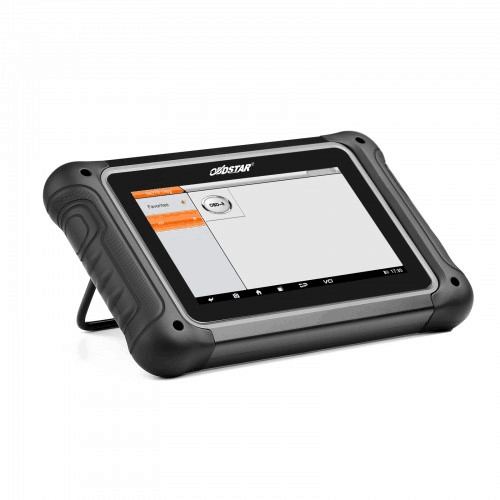

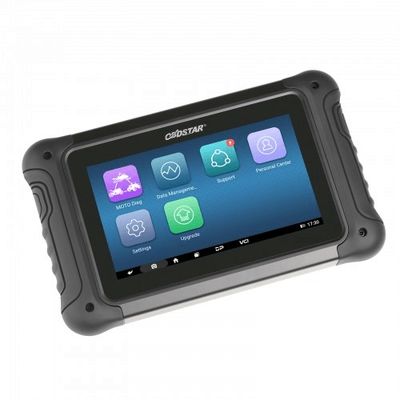

OBDSTAR MS70 is the new generation of intelligent motorcycle (Motorcycle/Snow mobile/ATV/UTV etc) diagnostic equipment of OBDSTAR Technology Co., Ltd, based on RK3128 Quad-Core processor, extremely fast and smooth; equipped with 7-inch capacitive touch screen, touch sensitive. Working with Moto special kit, it can do Moto IMMO, Odo recalibration, ECU programming(ECU tunig & remap will come soon!)
OBDSTAR MS70 New Generation Intelligent Motorcycle Scanner Motorbike Diagnostic Tool Supports Moto Diag

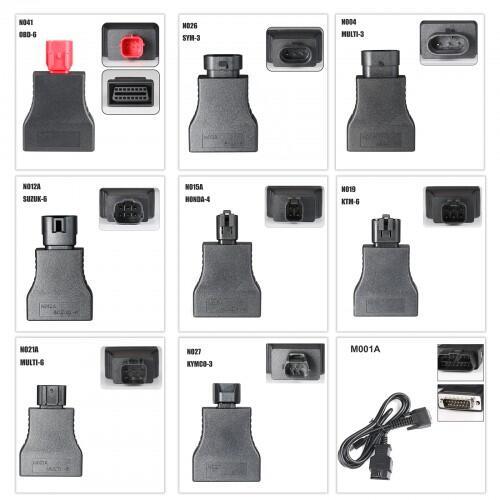

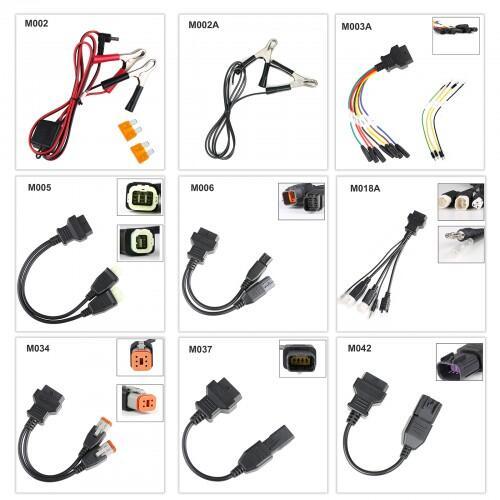

Working with Moto special kit, it supports Moto IMMO, Odo recalibration, ECU programming(ECU tunig & remap will come soon!).
OBDSTAR MS70 Functions
1. New android 5.1.1 operation system;
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;
4. Menu arbitrary selection is more convenient and quick;
5. Record and play back real-time data streams, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the internet, one-click software upgrade;
7. One-click remote function, OBDSTAR technical staff remote assistance;
8. Support the fault diagnosis of most of the world's luxury locomotives and tens of thousands of models.
OBDSTAR MS70 Advanced function
1. The first fault guidance, help data, technical bulletin, diag socket, etc. help you diagnose accurately and efficiently;
2. Diversified data stream display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;
3. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset, clear computer memory etc.
Motorcycle/snowmobile/ATV/UTV diagnostic function support series
ASIA:
AEON, BAJAJ, HARTFORD, HERO, HONDA, HYOSUNG, KAWASAKI, KYMCO, PGO, ROYAL ENFIELD, SUZUKI, SYM, TVS, YAMAHA
EUROPE:
APRILIA, BENELLI, BMW, DERBI, DUCATI, GILERA, HM, HUSQVARNA, KTM, MOTO GUZZI, PEUGEOT, PIAGGIO, ROYAL ALLOY, TRIUMPH, VESPA
AMERICAS:
ACELLERA, BRP, HARLEY-DAVIDSON, INDIAN
CHINA:
CFMOTO, CHINA ABS, CHINA ENGINE, HAOJUE, QJBENELLI, SHINERAY, ZONTE
More functions under developing...
OBDSTAR MS70 Latest Update Information:
KYMCO DIAG UPGRADE【V30.10】UPGRADE on Jul 30th, 2022
OBDSTAR MS50 Function Display:
1. Main Page/Brand Supported
2. Help Data/Technical Bulletin/Fault Guidance
3. Supported System List/Manual Service Function
4. Components Description
5. Diag Socket/Diag Connector Location
6. Data Flow Text/Waveform Diagram/Instrument Diagram

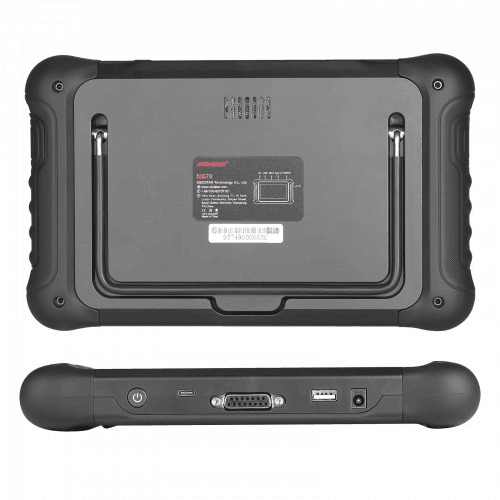

Product Specifications:
| Operation system | Android 5.1.1 |
| CPU | RK3128 quad-core ARM cortex A7 |
| Battery | 3700mA, rechargeable polymer lithium battery |
| Extension memory card | 32G micro SD (TF) card supported |
| Storage capacity | 16GB |
| LCD | 7.0 inch |
| LCD resolution | 1024*600 |
| Touch screen | Capacitive touch screen |
| Wifi | Supported |
| Working temperature | -20℃~55℃ (14℉~131℉) |
| Storage temperature | -20℃~70℃ (-4℉~158℉) |
| Weight | About 1.3kg |
| Dimension | 243mm*148*mm*36mm |
MS70 VS MS80 BASIC VS MS80 STD Product Comparison Chart:

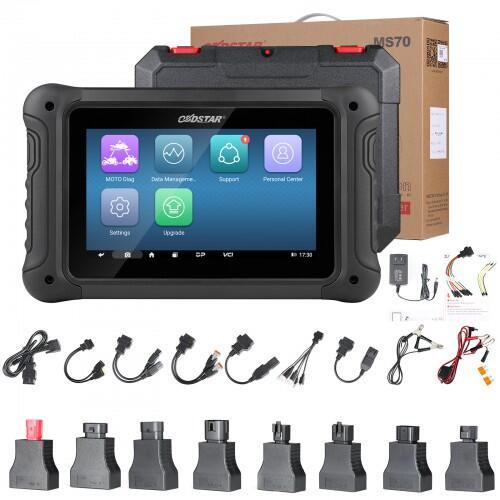

Package list:
1 set * OBDSTAR MS70
