OBDSTAR D800 A Configuration Marine Diagnostic Tool for Jetski
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | OBDSTAR D800 |
| 모델 번호 | 제트 스키를 위해 |
| 최소 주문 수량 | 것 |
| 가격 | 1980$ |
| 포장 세부 사항 | 51cm*39.5cm*17cm/6.9kg |
| 배달 시간 | 영업일 기준 1일 |
| 지불 조건 | T/T, 머니그램 |
| 공급 능력 | 재고 있음 |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 모델 이름 | OBDSTAR D800 | 원산지 | 중국 본토 |
|---|---|---|---|
| 품질 | 최고 | 상품 종류 | 엔진 분석기 |
| 종류 | 차량 진단 케이블 및 커넥터 | 패키지 | 표준 패키지 종이상자 |
| 운송 용어 | DHL, EMS, TNT, UPS, 페덱스 | 색상 | 포토쇼로서 |
| 보증 | 한 해 | ||
| 강조하다 | A Configuration OBDSTAR D800,Marine OBDSTAR D800,Jetski OBDSTAR D800 |
||
제품 설명
Product Description

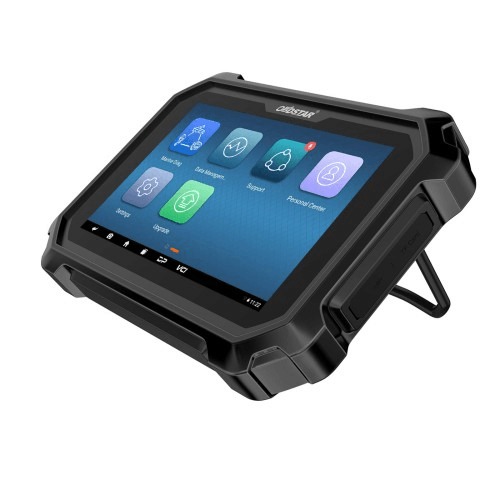

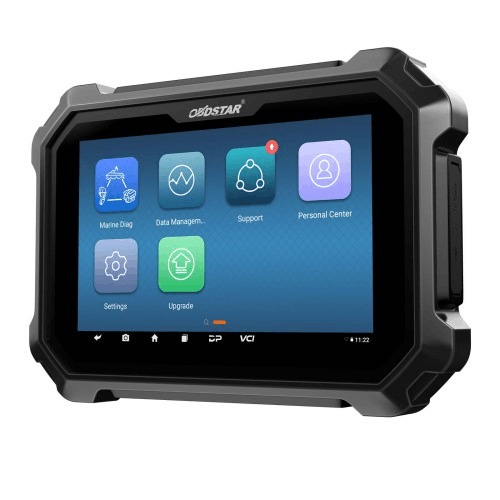

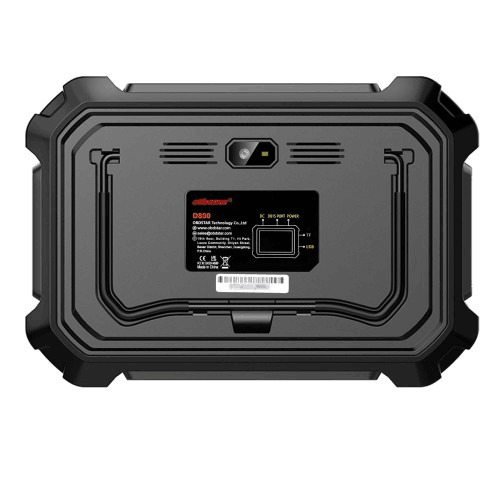

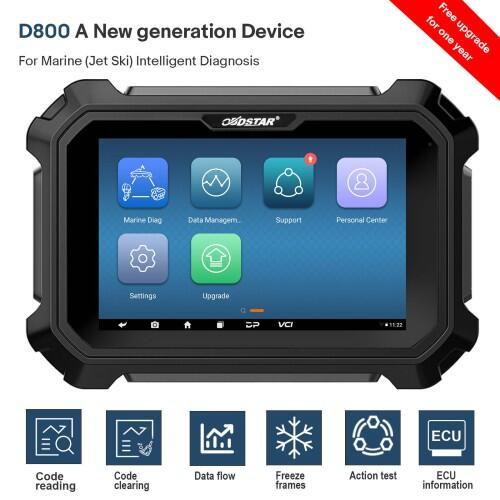

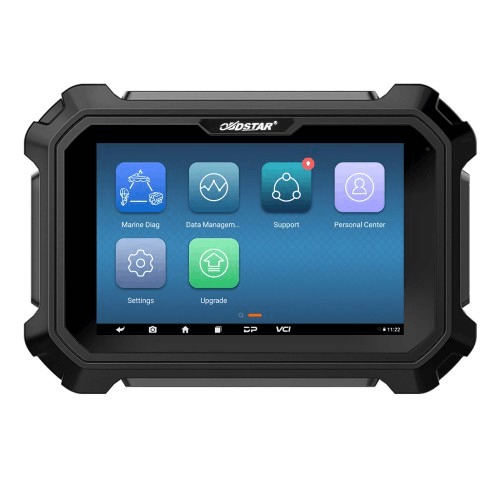

OBDSTAR D800 Configuration A is OBDSTAR's new generation device for marine (jet ski) intelligent diagnosis.
2023 Newest OBDSTAR D800 Configuration A for Marine (Jet Ski) Intelligent Diagnostic ScannerNotice:
OBDSTAR D800 A is out of stock, Please choose OBDSTAR D700 A for Jetski Intelligent Marine Scanner to replace it.
D800 four configurations
D800 A: Jetski
D800 A+B: Jetski, Outboard
D800 C+D: Inboard, Generator
D800 A+B+C+D: Jetski, Outboard, Inboard, Generator
Functions
1. New android 5.1.1 operation system;
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including ECU information, code reading, code clearing, data flow, freeze frames, action test, setting, coding etc;
4. Record and play back real-time flow, quickly and accurately locate sensor and component faults;
5. Wi-Fi connection to the internet, one-click software upgrade;
6. One-click remote function, OBDSTAR technical staff remote assistance.
Advanced Function
1. The OBDSTAR mobile APP integrates functions such as diag socket location, flash code query, technical bulletin, manual service function(service lamp reset), basic parameters, etc., working with D800 to make marine diagnosis more accurately and efficiently (some functions are only available for D800 users to check for free);
2. The exclusive interactive wiring diagram and electrical appliance description query function make your diagnosis worry-free;
3. Various data flow display modes such as text, waveform diagram and instrument diagram allow you to easily analyse faults;
4. Auto Scan, Active Trim Configuraion, Active Trim GPS Configuraion, Auxiliary Joystick Congfiguration, BCM Simulator, Compass Congfiguration, Device Initialization, Drive Alignment, Helm Setup, Instance Setting, Maintenance Setting, Merc TDS Reset, Remote Control Reset, Set Engine Location, Set Tach Link, Set Tilt Limit, SMUX Congfiguration, Steeing Wheel Centering, Syetem Calibration, Torque Ajustment, Trackpad Configuration, Vessel Personality, and other functions.
Supported Brands
EVINRUDE, HONDA, JOHNSON, KAWASAKI, MARINER, MERCURY/MERCURY RACING, PARSUN, SEA-DOO(BRP), SELVA MARINE, SEVEN MARINE, SUZUKI, TOHATSU, YAMAHA...
Optional Brands
CATERPILLAR, CFMOTO, CRUSADER ENGINES, CUMMINS MARINE, CUMMINS MERCRUISER DIESEL, DAEDONG, DAF MARINE, FNM MARINE, FORD MARINE, FPT (Fiat Powertrain Technologies), HYUNDAI SEASALL, ILMOR, INDMAR, JOHN DEERE MARINE, KODIAK MARINE, KOHLER POWER SYSTEMS, LOMBARDINI MARINE, MAN MARINE, MARINE POWER, MTU, PANTHER AIRBOATS, PCM Marine Engines, PERKINS, SCANIA MARINE, SISU, STEYR MOTORS, TOYOTA MARINE, VM MOTORI, VOLKSWAGEN MARINE, VOLVO PENTA, YANMAR...
More functions are under development...
Specification:
| Operation system | Android 5.1.1 |
| CPU | Exynos4418 qual core ARM cortex A9 |
| Battery | 3700mA, rechargeable polymer lithium battery |
| Extension memory card | 32G micro SD (TF) card supported |
| Storage capacity | 32GB |
| LCD | 8.0 inch |
| LCD resolution | 1280*800 |
| Touch screen | Capacitive touch screen |
| Wifi | Supported |
| Camera | 5 mega rear view camera |
| Working temperature | -10℃～55℃ (14℉～131℉) |
| Storage temperature | -20℃～70℃ (-4℉～158℉) |
| Weight | 1kg (main unit) |
| Dimension | 254mm*174mm*35mm |

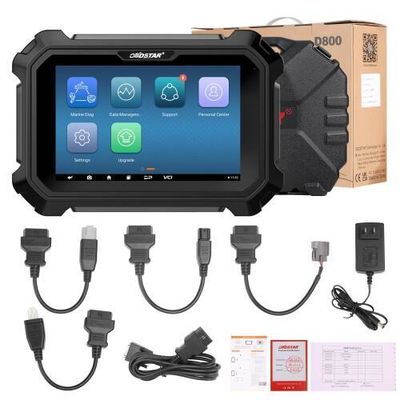

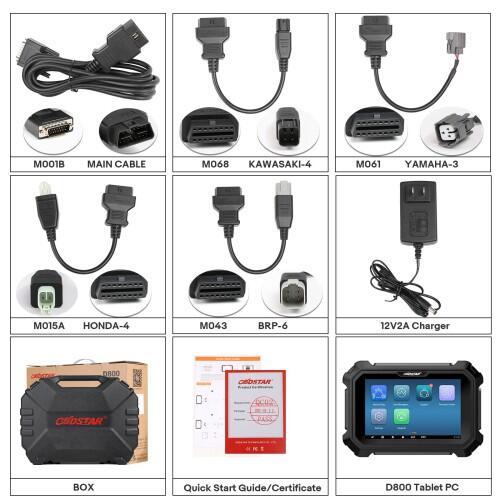

Package List:
1 set x OBDSTAR D800 Configuration A
1pc x box
1pc x M001B main cable
1pc x M015A Honda-4
1pc x M043 BRP-6
1pc x M061 Yamaha-3
1pc x M068 Kawasaki-4
1pc x 12V2A charger

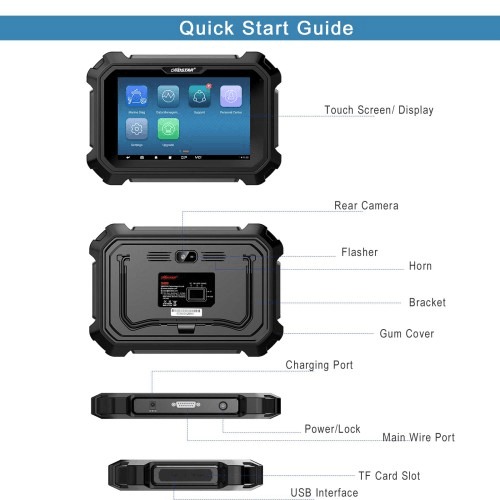

1pc x quick start guide/ certificate
