XTOOL EZ500 Full-System Diagnosis for Gasoline Vehicles with Special Function Same Function With XTool PS80
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | XTOOL |
| 모델 번호 | xtool ez500 |
| 최소 주문 수량 | 것 |
| 가격 | 849$ |
| 포장 세부 사항 | 56cm*42cm*18cm/8.6kg |
| 배달 시간 | 영업일 기준 1일 |
| 지불 조건 | T/T, 머니그램 |
| 공급 능력 | 재고 있음 |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 모델 이름 | xtool | 원산지 | 중국 본토 |
|---|---|---|---|
| 품질 | 최고 | 상품 종류 | 엔진 분석기 |
| 종류 | 차량 진단 케이블 및 커넥터 | 패키지 | 표준 패키지 종이상자 |
| 운송 용어 | DHL, EMS, TNT, UPS, 페덱스 | 색상 | 포토쇼로서 |
| 보증 | 한 해 | ||
| 강조하다 | XTOOL EZ500 for Gasoline Vehicles,Full-System Diagnosis XTOOL EZ500 |
||
제품 설명
Product Description
XTOOL EZ500 is a high-end and new style gasoline vehicles diagnostic device developed by XTOOL based on Android system. Its open source Android operating system provides fast boot-up and multitasking. XTOOL EZ500 provides extensive vehicle coverage for most US, Asian and European makes, which makes it the best solution for workshops.
XTOOL EZ500 Full-System Diagnosis for Gasoline VehiclesFree Update Online for 2 Years.
XTOOL EZ500 Features:
*Easy registration when EZ500 is connected to WIFI
*One-click software update via WIFI
*Remote access
*Diagnosis reports in PDF file
*Record and playback live data
*8.0 inch multi-touch screen
*On-board battery
*Extensive vehicle coverage for most US, Asian and European vehicle makes
Language supported: English only
XTOOL EZ500 Functions List:
Read DTCs:read the trouble codes that are stored in the ECU.
Clear DTCs:clear current and historical trouble codes memory in ECU.
Read Live Data:This will allow you to read the parameters of the system being interrogated.
Actuation/Activate Components Test:Activations allow you to operate supported components for troubleshooting purposes.
Adaptation
Basic Setting
Advanced ID
Security Access
Coding

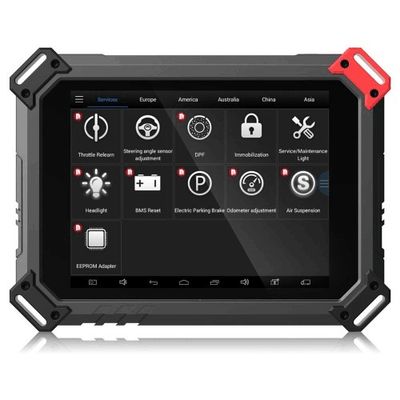

XTOOL EZ500 Special Funciton List:
Battery Matching
Adjustment Injector
Airbag Deactivate/Activate
ABS Bleed
Maintenance Reset
Airbag Reset
Odometer
Throttle Adjustment
Clear Learning Value
Read PIN Code
Stop/Activate SBC
Oxygen Light Reset
XTOOL EZ500 Coveraged System
Engine
Transimission
Brake
Steering
Kessy
Seat
Display
Air condition
Central electrics
Alternative fule engine
etc...
XTOOL EZ500 Car List:
Extensive vehicle coverage for most US, Asian and European vehicle makes
American: GM, Chrysler, Ford, Chevrolet, Hummer, Cadillac, Saturn
Europe: Volvo, Skoda, Land rover, Jaguar, Ford, Sprinter, Seat, Renault, Peugeot, Opel, Vauxhall, Fiat, Citroen, BMW, BENZ, AUDI, VW, Porsche, Lancia, MayBach, Rolls-Royce, Mini, Smart, Transporter, Lamborghini, Gugatti, Abarth, VW_CV
Asia: Acura, Honda, Infiniti, Isuzu, Lexus, Mitsubishi, Nissan, Suzuki, Kia, Toyota, Hyundai, Mazda, Daihatsu, Daewoo, Scion, Holden, AUFord and more…
Chinese Vehicle: Geely, Chery, Greatwall, Jiao, Lifan, BYD, Brilliance and more...
Xtool EZ500 Layout
① DC Charging port: Battery charging
② DB15 Interface: Supports wired connection with car by the cable
③ USB Type C Interface: Compatible with HDMI TV port; Transfer audio and video simultaneously
④ Power Button: Power on or power off
EZ500 Exploded Diagram
Easy registration when EZ500 is connected via Wifi, no need connected to PC.
Connect to the vehicle directly with cable
① EZ500 Mainframe
② Main Test Cable
③ OBD2 16pin Connector
④ Vehicle
How to Update XTOOL EZ500 Diagnostics:
XTOOL EZ500 updates directly via the Internet using WiFi or wired connection.To access the update application open the EZ500 application and click UPDATE,shown below
XTOOL EZ500 FAQs:
Question 1:Includes Eeprom Adapter?
Answer 1:No include the eeprom adapter
Question 2:Can this tool work with Japenese Toyota premio
Answer 2:Yes it work !
Question 3:it can programming ecm/pcm module
Answer 3:Yes it would
Question 4:is it possible to set the odometer of a f150 2003?
Answer 4:Sorry it can't,but can work with f150 2011 to now
Question 5:Will the Kc100 work with the ez500?
Answer 5:Sorry,it can’t.KC100 work with X100 PAD2
XTOOL EZ500 Specification:
| Operating System: | Android 4.4.4 |
| Memory: | 1GB RAM,16GB Flash |
| CPU | Quad Core, 1.6 GHz |
| Display | 8.0 Inch IPS 5-Point Multi-touch Screen with 1024×600P Resolution |
| Sensors: | Gravity Sensor, Light Sensor |
| Input/Output: | Microphone, Dual Speakers, 3.5 mm headset jack, Mini HDMI Port, 2.0USBPort, TF Card Port |
| Battery: | 4000mAh, 7.4V |
| WIFI | WIFI 2.4Ghz |
| Bluetooth | 100 Meters |
| Power Voltage: | 12V |
| Power Consumption: | 29.6W |
| Operating Temperature: | -20 to 50℃(-4 to 126℉) |
| Humidity: | <90% |

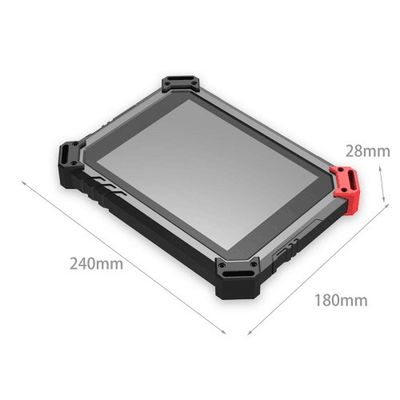

| Dimension: | (L*W*H): 240*177*30mm |

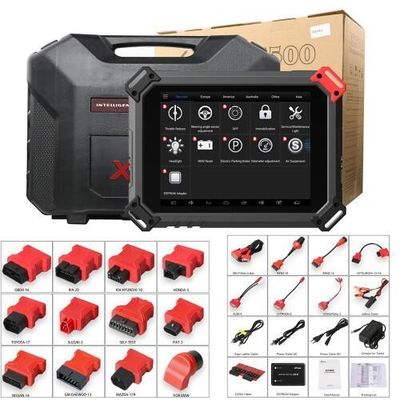

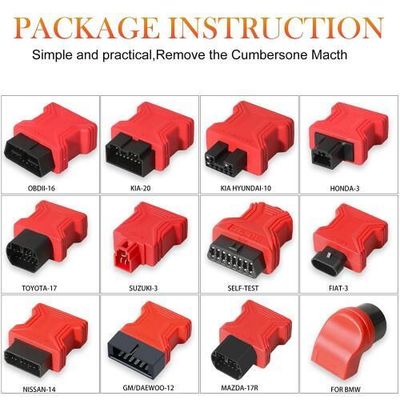

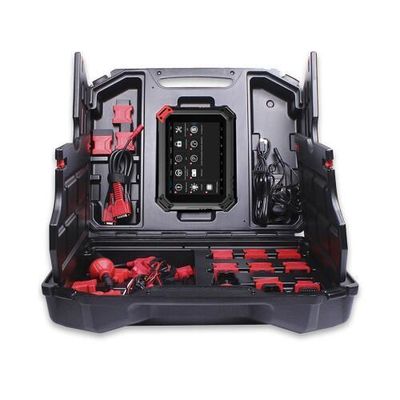

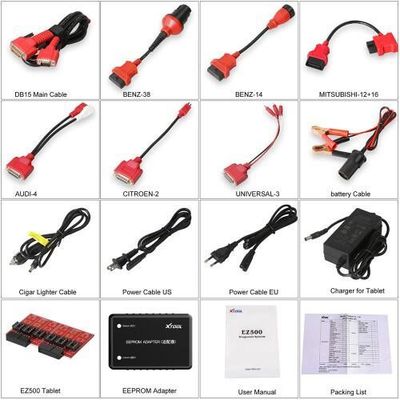

XTOOL EZ500 Package Including:
1pc x EZ500 Tablet
1pc x Charger for Tablet
1pc x OBD II-16
1pc x HONDA-3
1pc x BMW-20
1pc x TOYOTA-17
1pc x MAZDA-17R
1pc x KIA-20
1pc x NISSAN-14
1pc x GM/DAEWOO-12
1pc x SELFTEST
1pc x UNIVERSAL-3
1pc x SUZUKI-3
1pc x FIAT-3
1pc x CITROEN-2
1pc x AUDI-4
1pc x MITSUBISHI-12+16
1pc x BENZ-38
1pc x BENZ-14
1pc x Main Cable
1pc x battery Cable
1pc x Cigar Lighter Cable
1pc x US Power Adapter
1pc x EU Power Adapter
1pc x Micro USB Cable
1pc x Case
1pc x Stand for EZ500
1pc x Certificate of Quality
1pc x Packing List
1pc x User Manual
1pc x Carton
