Lonsdor KH100+ Remote Key Programmer with 902MHZ Support and Toyota 8A Smart Key Direct Copy

원래 장소 중국
브랜드 이름 LONSDOR KH100+
모델 번호 론스도르 KH100+
최소 주문 수량 1
배달 시간 1 일
지불 조건 T/T, Western Union, Moneygram
공급 능력 1000

무료샘플과 쿠폰을 위해 나와 연락하세요.

왓츠앱:0086 18588475571

위챗: 0086 18588475571

스카이프: sales10@aixton.com

만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.

x
제품 상세 정보
모델 이름 론스도르 KH100+ 기원 중국 본토
품질 우수한 특징 KH100+ 원격 키 프로그래머
항목 유형 Lonsdor KH100+ 키 프로그래머 도구 함수 1 칩 복사;IC/ID 카드;칩 에뮬레이션;칩 생성
기능 2 키 생성, 코일 인식, 주파수 감지, 특수 기능 기능 3 고정 코드 원격 편집 및 생성
기능 4 고정 코드 복사;차고 문 열쇠 함수 5 WIFI 온라인 작업 지원
약속 100% 원본
강조하다

902MHZ Remote Key Programmer

,

Toyota 8A Smart Key Direct Copy Key Programmer

,

Exclusive 8A(H chip) generation Key Programmer

메시지를 남겨주세요
제품 설명

Lonsdor KH100+ Hand-Held Remote Key Programmer without Remote Key Package Update Version of KH100



Lonsdor KH100+ Remote Key Programmer with 902MHZ Support and Toyota 8A Smart Key Direct Copy 0



Lonsdor KH100+ Highlights:

1. Modern appearance design, in line with the operating habits of the public.
2. Device system comes with operation instructions, easier for you to use.
3. It covers almost all the functions of the similar products in the market.
4. Built-in super sensor to collect data(over-range data collection).
5. Exclusive support for 8A(H chip) generation.
6. Built-in WIFI module, can connect to network at any time
7. 4-pack remotes & smart key involved
8. Handy chip holder integrated, 902MHZ supported
9. For Toyota 8A Smart Key Direct copy to Add key (Latest Update)

Lonsdor KH100+ Remote Key Programmer with 902MHZ Support and Toyota 8A Smart Key Direct Copy 1

Identify/Copy/Generate Chip:
Multi-vendor chips supported
Especially for Toyota 8A(H) chip Our predominance

Lonsdor KH100+ Remote Key Programmer with 902MHZ Support and Toyota 8A Smart Key Direct Copy 2

Simulate Chip:
Able to simulate 4D/46/48 chips
With built-in super sensory data collector(no interference within 1 meter when collecting data)

Lonsdor KH100+ Remote Key Programmer with 902MHZ Support and Toyota 8A Smart Key Direct Copy 3


Generate Remote/Smart key:
Dedicated connector to generate remote/smart key Online update supported
Remote generation diagram


Lonsdor KH100+ Remote Key Programmer with 902MHZ Support and Toyota 8A Smart Key Direct Copy 4


Smart Key Generation Diagram



Lonsdor KH100+ Remote Key Programmer with 902MHZ Support and Toyota 8A Smart Key Direct Copy 5

Dedicated Connector to Generate Remote Key:PS2-7Pin OD3.5

Lonsdor KH100+ Remote Key Programmer with 902MHZ Support and Toyota 8A Smart Key Direct Copy 6

Access Control/Remote Frequency
One-click identify and copy IC/ID cards
Copy multi-vendor chops
Detect remote frequency bands with high accuracy
One click identify ID card,able to copy multi-vendor chps,at the back sensor area

Lonsdor KH100+ Remote Key Programmer with 902MHZ Support and Toyota 8A Smart Key Direct Copy 7

Detect Super Frequency
Detect multiple frequency brands with high accuracy

Lonsdor KH100+ Remote Key Programmer with 902MHZ Support and Toyota 8A Smart Key Direct Copy 8


Identify Coil:
1) Search smart induction area Connect remote key with remote connector, Put KH100+'s antenna close to the pre-determined position. If inductive signal is identified, the device will continuously make sounds, please check if the position is right(as shown below).
2) Detect IMMO Connect remote key with remote connector, Put KH100+'s antenna close to key identification coil, and use key to turn ignition ON. When KH100+ buzzer beeps, it means signal is detected.



Lonsdor KH100+ Remote Key Programmer with 902MHZ Support and Toyota 8A Smart Key Direct Copy 9

Remote Frequency
Enter this menu, put remote control at the device’s induction area to detect remote frequency.


Lonsdor KH100+ Remote Key Programmer with 902MHZ Support and Toyota 8A Smart Key Direct Copy 10
Lonsdor KH100+ Special Function:

Include: detect infrared signal, unlock for Toyota smart key, More functions, to be continued...

1. Detect Infrared Signal
Put remote control at the infrared signal detection area, press the remote's button once. When the light on KH100's screen is on, it indicates there is infrared signal, otherwise there is no signal (see below pic).

Lonsdor KH100+ Remote Key Programmer with 902MHZ Support and Toyota 8A Smart Key Direct Copy 11
2. FT Smart Key
For Toyota or Lexus smart keys from Lonsdor, you can perform the following functional operations: read version info, modify key value, unlock and upgrade program and etc. Put in the smart key, click [select] to operate.

3. Unlock for Toyota Smart Key/Detect for Toyota Key Status
Put in the smart key, click OK to operate.

4. Charge Key
For a chargeable key with battery, you can perform this function. Put in the key, click [OK] to operate.

Lonsdor KH100+ Registration Guide:

Note: After booting the device, please connect to WIFI and enter the following process.
New User
1) For the first use, please prepare a common call phone or email to help complete activation process, click OK to start.
2) Boot the device and enter registration activation process.
3) Input user name, password. Confirm password, cell phone number or email to obtain verification code. Then input the code to submit registration.
4) Account registered successfully, it will take 5 seconds to bind the device.
5) Successful registration, enter the system.


Registered User (who has registered Lonsdor products before)
1) For the first use, please prepare a registered call phone or email to help complete activation process, click OK to start.
2) Boot the device and enter registration activation process.
3) Input your registered mobile number or email, password to obtain verification code. Then input the code to submit login.
4) Account login succeeded, it will take 5 seconds to bind the device.
5) Successful registration, enter the system.

In addition, users who have already registered Lonsdor's product can directly choose [registered user] to activate account.


How to update Lonsdor KH100+:


Enter settings menu
Connect the device to network
Then choose [check for updates]
One-click for online update!

Lonsdor KH100+ Remote Key Programmer with 902MHZ Support and Toyota 8A Smart Key Direct Copy 12

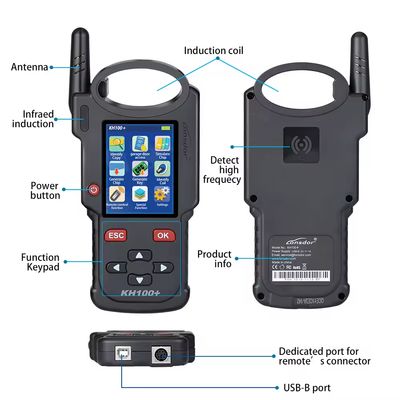

Name Notes
Antenna To induce simulated chip and detect ignition coil
Display screen 2.8-inch color screen, resolution: 320X480
Induction coil To identify, copy, generate key chip or remote, etc.
Port 1 USB-B port
Port 2 Dedicated port for remote’s connector
Power button In shut-down state, tap to boot the device. In power-on state, tap to switch to power saving mode. Long press for 3s to shut down
Remote frequency detection Put remote in this position to detect its frequency.
High-frequency detection

To identify and copy IC card.





Lonsdor KH100+ Function List:

Identify Copy
Chip Simulation
Remote Generation
Remote Frequency
Access Control Key
Chip Generation
Coil Identification
Special Function

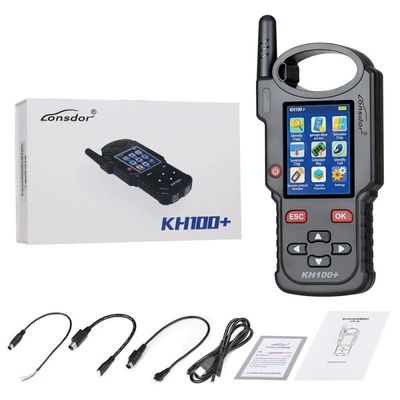

Packing List


1pc x Lonsdor KH100+ Hand-Held Remote Key Programmer
1pc x USB cable
3pcs x remote programming cables
1pc x manual
1pc x product certificate card





Lonsdor KH100+ Remote Key Programmer with 902MHZ Support and Toyota 8A Smart Key Direct Copy 13



Lonsdor KH100+ Remote Key Programmer with 902MHZ Support and Toyota 8A Smart Key Direct Copy 14


Lonsdor KH100+ Remote Key Programmer with 902MHZ Support and Toyota 8A Smart Key Direct Copy 15
